Duct Panelling

“Sleek and tidy” – Our contemporary made to measure duct panelling system is designed to integrate into any one of our Cubicle ranges
  • Concealed panelling sets are made to suit site conditions and overall sizes available. If in doubt, our technical staff will be able to supply full specifications to suit your needs.

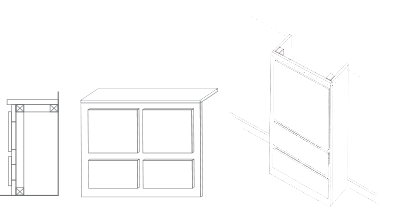

  • Full height or low level concealed cistern panelling can be manufactured and supplied to match your cubicle design and colours.
  • 20mm Moisture Resistant, Melamine faced chipboard panels with integrated 2mm hardwearing PVC edging all round as standard.
Our full or half-height Concealed panelling systems can be supplied to match any of our toilet cubicle colours.

Concealed Panelling Specification / Material Options

All our panels are manufactured from 19mm Melamine Faced Chipboard as standard, with an integral 2mm PVC edging all round. Concealed panel kits are supplied in flat-pack form, complete with relevant lift on / off clips. Please Note: Timber studwork is always supplied by others. Installing our panel kits is a very cost effective option as they put an end to continual redecoration and solve the problem of unsightly marks caused by every day knocks, our panels are hard wearing, hygienic and very easy to clean.

Hardware and fittings for Duct Panelling

Lift off and push fit panel clips are used to secure flat panels to hidden frames. They provide a simple but effective means of concealing hidden pipework and services. Typically there are four sets of clips fitted to a panel and the matching four clips fitted to the framework.

Toilet Cubicles.co.uk supply the clips packed on cards in sets of four, complete with all screws. This avoids the need to send bulk packs to site as well as time consuming counting.
